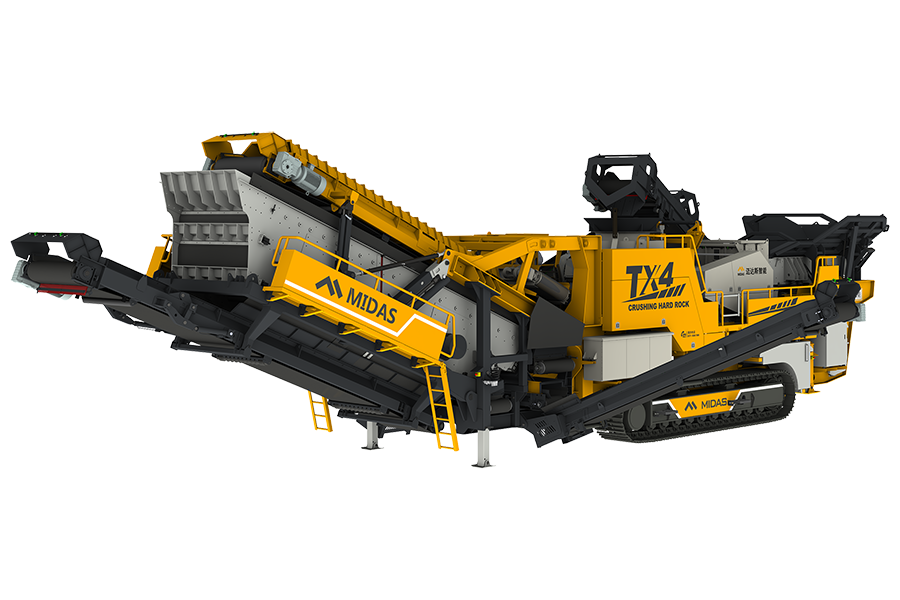

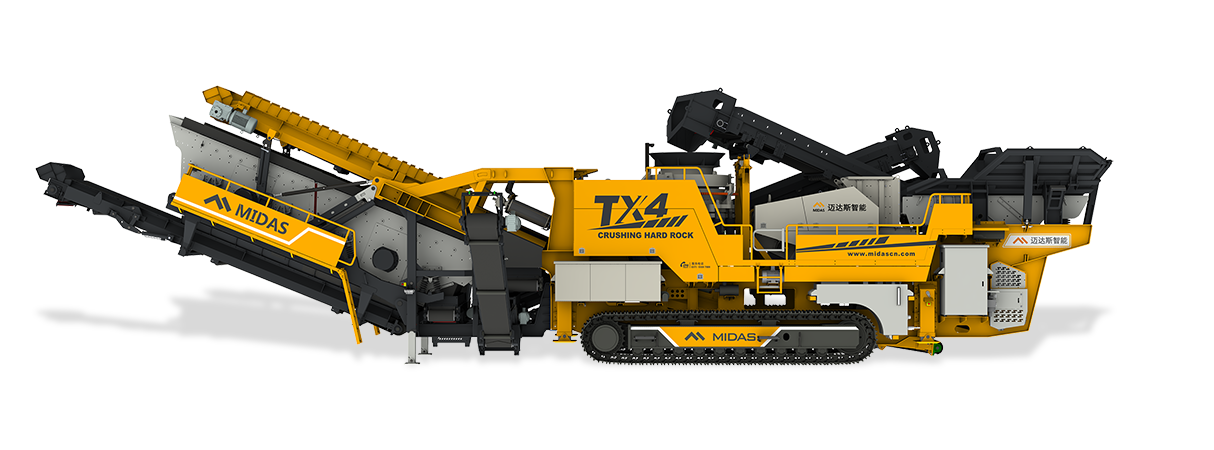

TRACKED MOBILE CRUSHING AND SCREENING FOUR IN ONE STATION TX4
Special for hard rock crushing,Ultra high energy efficiency,A creative breakthrough

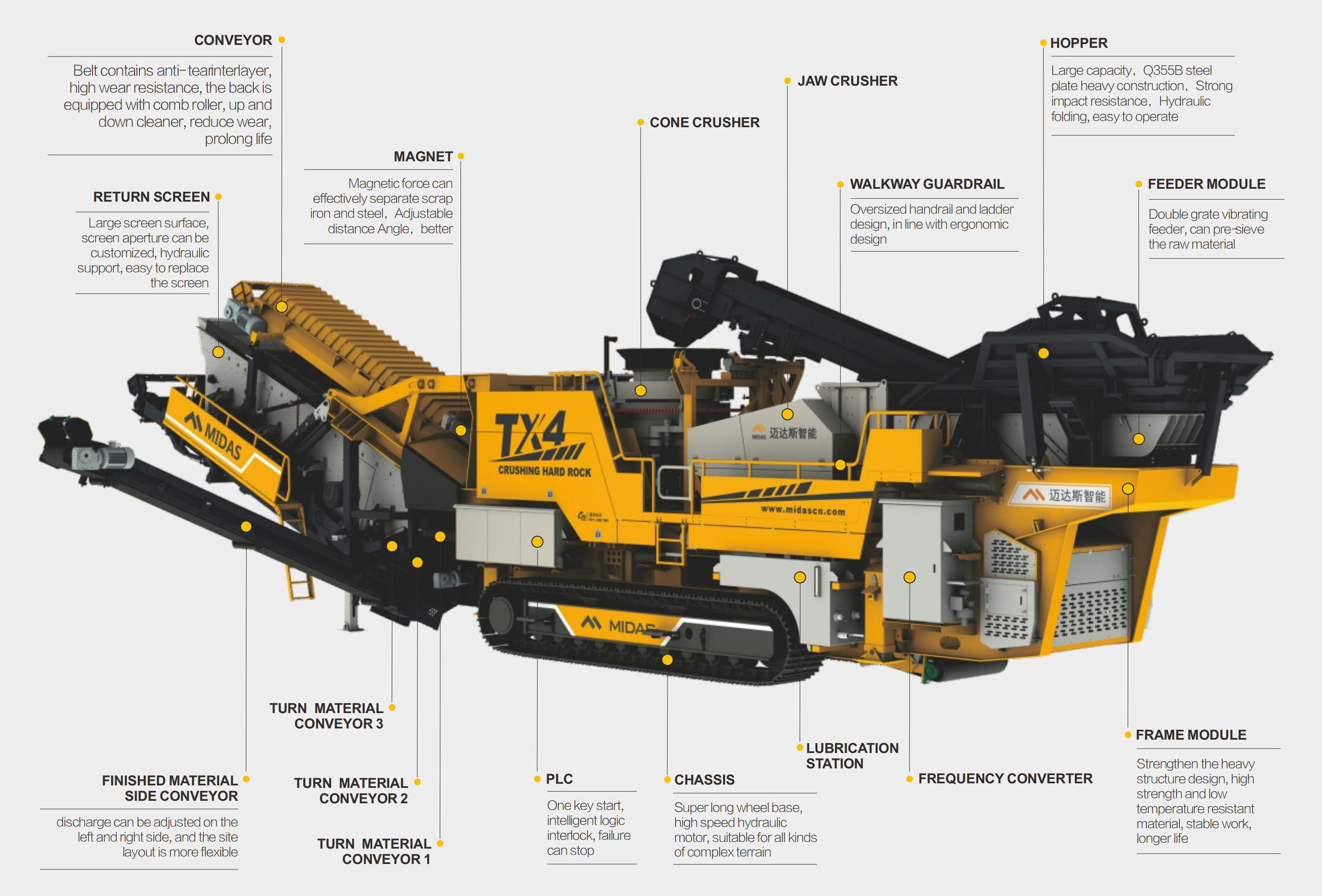

TX4 is a master in the field of crawler mobile hard rock crushing and screening. It creatively integrates four units: vibrating feeder, jaw crusher, multi cylinder hydraulic cone crusher and three-layer two-stage screen. Through exquisite structural design, TX4 achieves the same crushing and screening effect of stationary crushing plant, opens a new journey of mobile hard rock crushing, and is Midas's breakthrough contribution to the industry.
Applicable fields：Secondary and tertiary crushing and screening of medium and high hardness materials，Hard rock production line with limited space，Quarry, river stone, granite, diabase and other high abrasiveness stone (SiO2 content higher than 75%) crushing and sand production，Crushing of iron ore before ball mill in large-scale ore processing plant.
Processing capacity:
200-400 （t/h）
Overall power:
452 （KW）
Classification:
Service Hotline:
Product Details
TX4 is a master in the field of crawler mobile hard rock crushing and screening. It creatively integrates four units: vibrating feeder, jaw crusher, multi cylinder hydraulic cone crusher and three-layer two-stage screen. Through exquisite structural design, TX4 achieves the same crushing and screening effect of stationary crushing plant, opens a new journey of mobile hard rock crushing, and is Midas's breakthrough contribution to the industry.
Product Parameters
| Model | TX4 |
| Feeder | |
|---|---|
| Feeder width × length(mm) | 1100×3960 |
| Feeding height(mm) | 4170 |
| Maximum feeding size(mm) | 630 |
| Crusher | |
| Jaw crusher model | MC106 |
| Cone crusher model | HPC300 |
| Return screen length×width(mm) | 2000×2500/2000×3500 |
| Number of layers | 3 |
| Closed side setting (mm) | 10-45 |
| Conveyor | |
| Main conveyor belt width (mm) | 1200 |
| Transfer conveyor belt-1 width (mm) | 800 |
| Transfer conveyor belt-2 width (mm) | 500 |
| Re-circulation conveyor belt-1 width (mm) | 800 |
| Re-circulation conveyor belt-2 width (mm) | 800 |
| Under screen conveyor belt width (mm) | 1000 |
| Stack height （mm） | 3260 |
| Finished material side conveyor belt-1 width×stacking height(mm) | 650x3200 |
| Finished material side conveyor belt-2 width×stacking height(mm) | 500x3200 |
| Power Unit | |
| Engine power(kW) | 147KW |
| Diesel tank capacity | 238L |
| Hydraulic tank capacity | 480L |
| Technical Data | |
| Total power(kw) | 486.9 |
| Host power(kw) | 110+250 |
| Processing capacity(t/h) | 200-400 |
| Track speed(km/h) | 0.6-1 |
| Total weight(t) | 116 |
| Transport dimension(mm) | 21900x3964x3944 |
